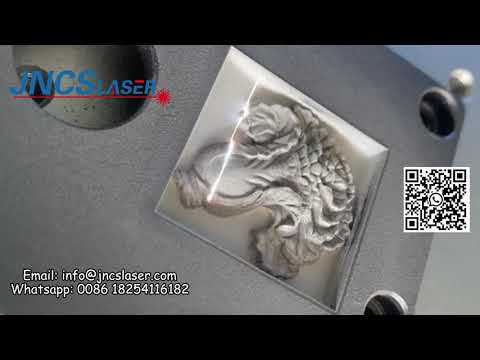

50W 100W 2.5D fiber laser marking machine for deep marking, embossing, cutting , jncslaser https://www.jncslaser.com/products/fiber-laser-marking-machine
Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.
Main Feature:
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4.Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Technical Parameters:
Type specification CS-F20 CS-F30 CS-F50 CS-F100
Wave length of laser 1064nm
Laser repetition frequency 20kHz~100kHz
Laser power 20W 30W 50W 100w
Marking scope 70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional
Laser sources Fiber module
Laser Head Scanning head
The minimum focus facula diameter 20μm
Minimal character 0.01mm
Marking speed ≤7000mm/s
Repeated accuracy 0.0025mm
Cooling ways Force-air Cooling
Power supply 220V/ 50Hz/2kVA
Process Material All kinds of metal and part of Non-metal Materials
Support format PLT, BMP, DXF, JPG, TIF, AI etc
Package Standard Crate for export
Package Size and Gross Weight 92CM L X 52CM W X 86CM H 70KG
